R1-READY-PACK
$440.00


Make sure you are buying the right radio.
CLICK HERE

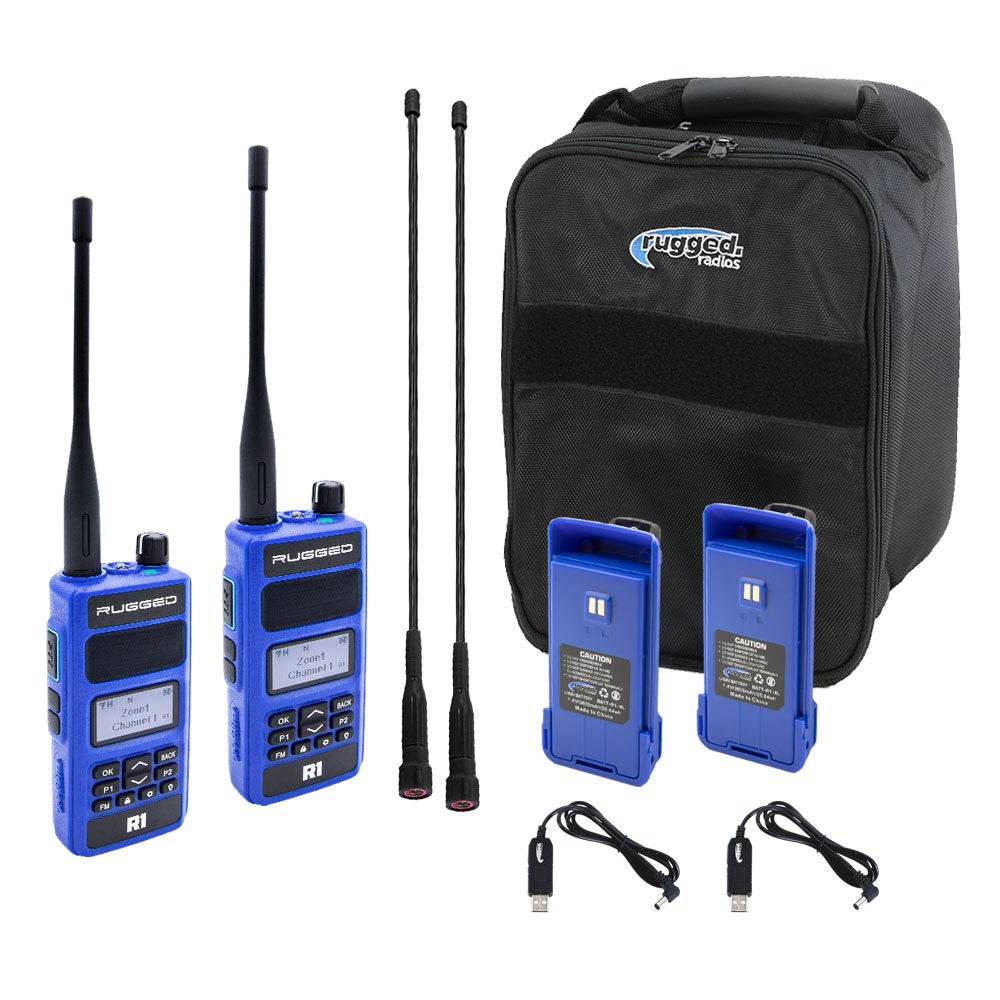

The Rugged Ready Pack features two of our R1 Handheld Radios, and all of the essential accessories so you can maximize the capabilities of your little blue radio!

Accessory Highlights :

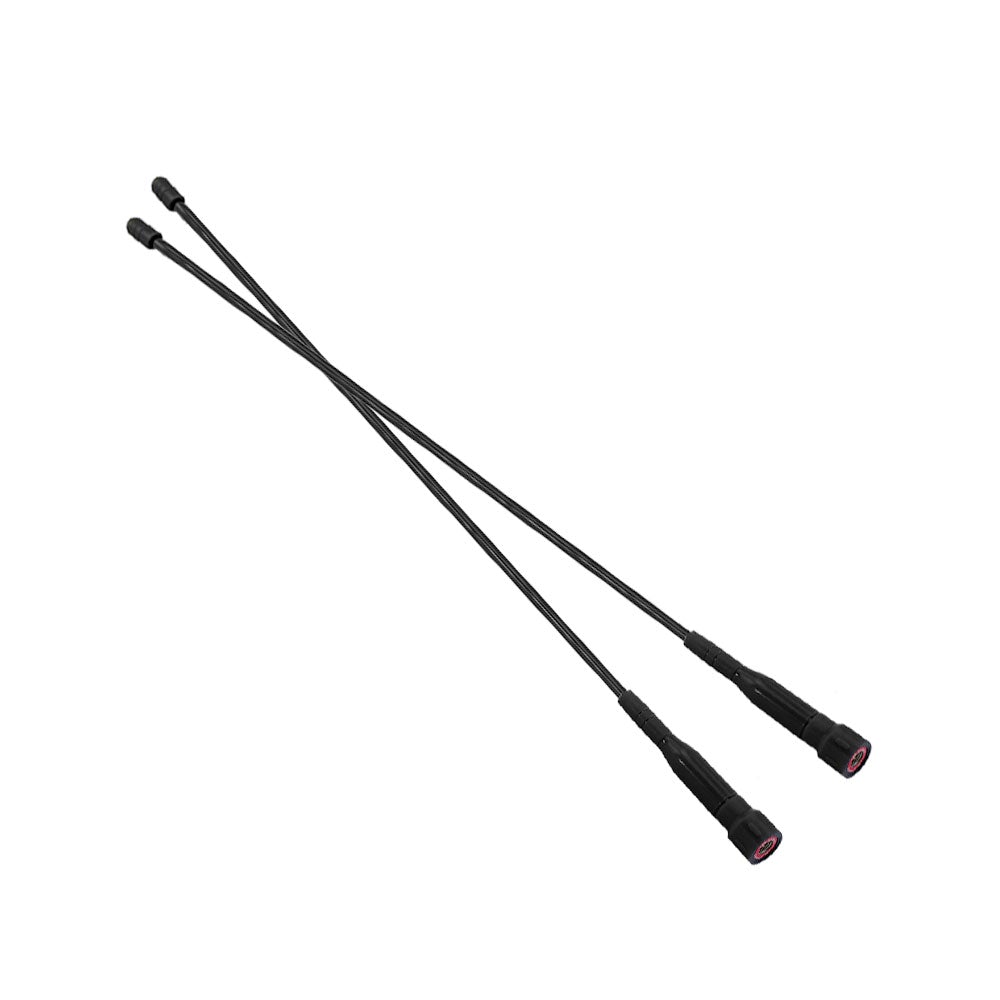

  • XL Antennas for 30% more range

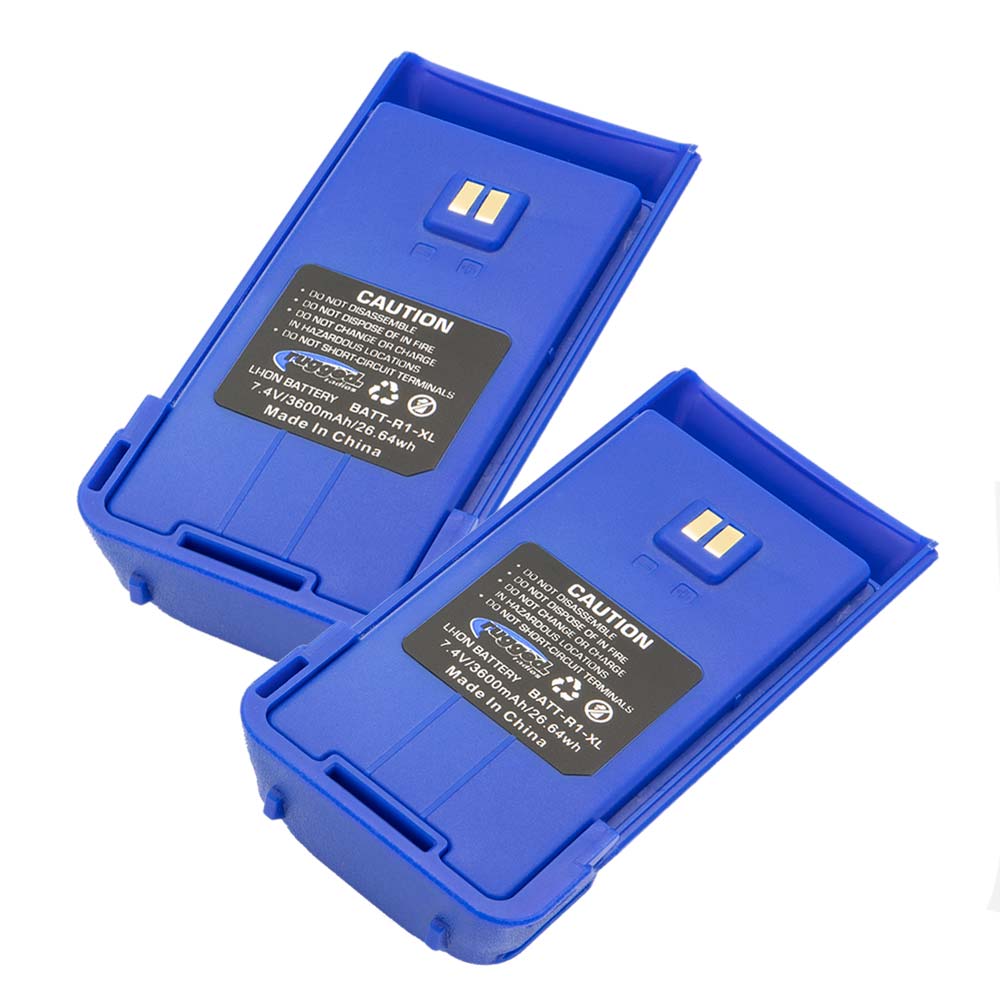

  • XL Batteries for double the battery life

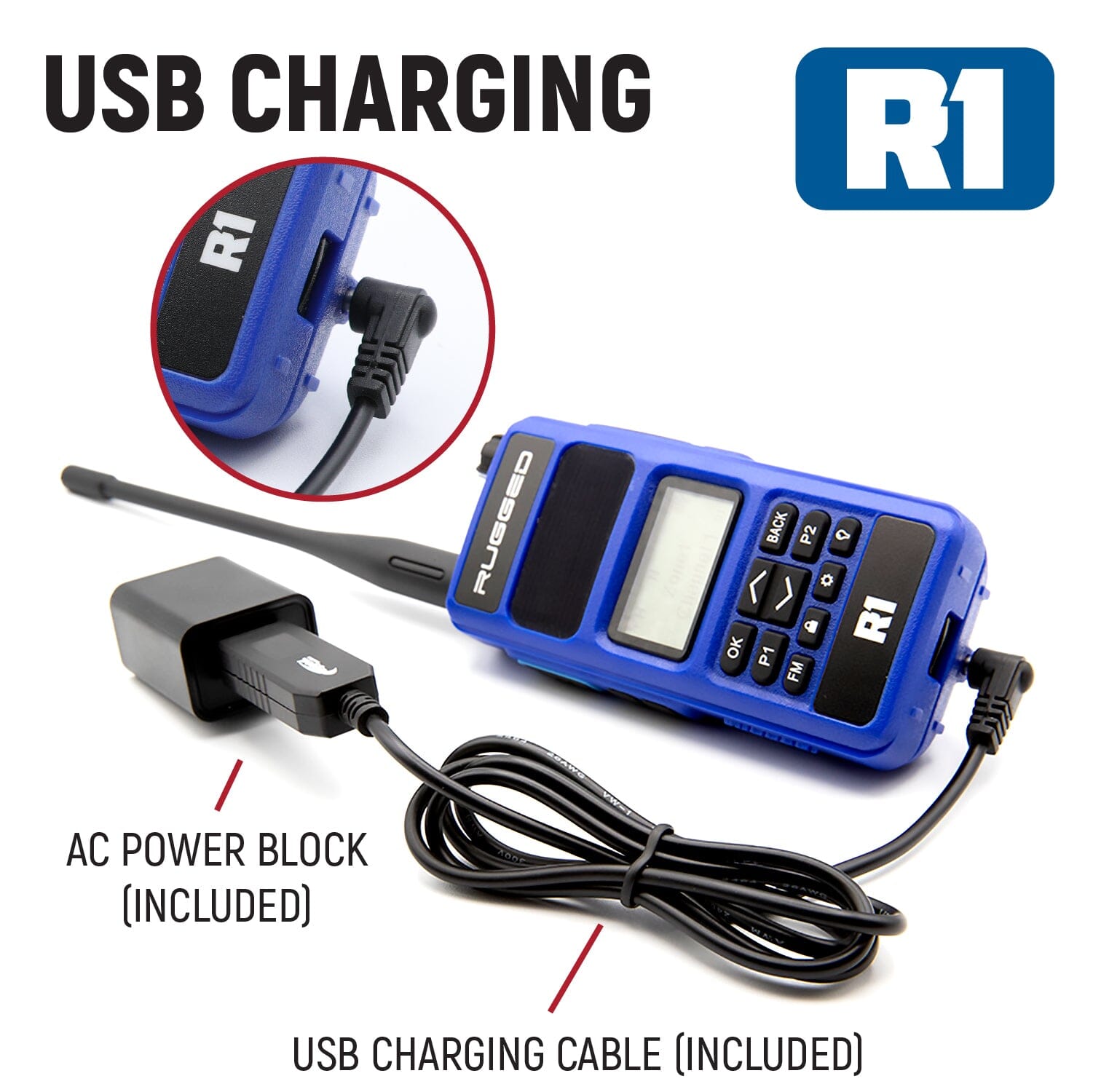

  • USB charging cables to conveniently charge anywhere

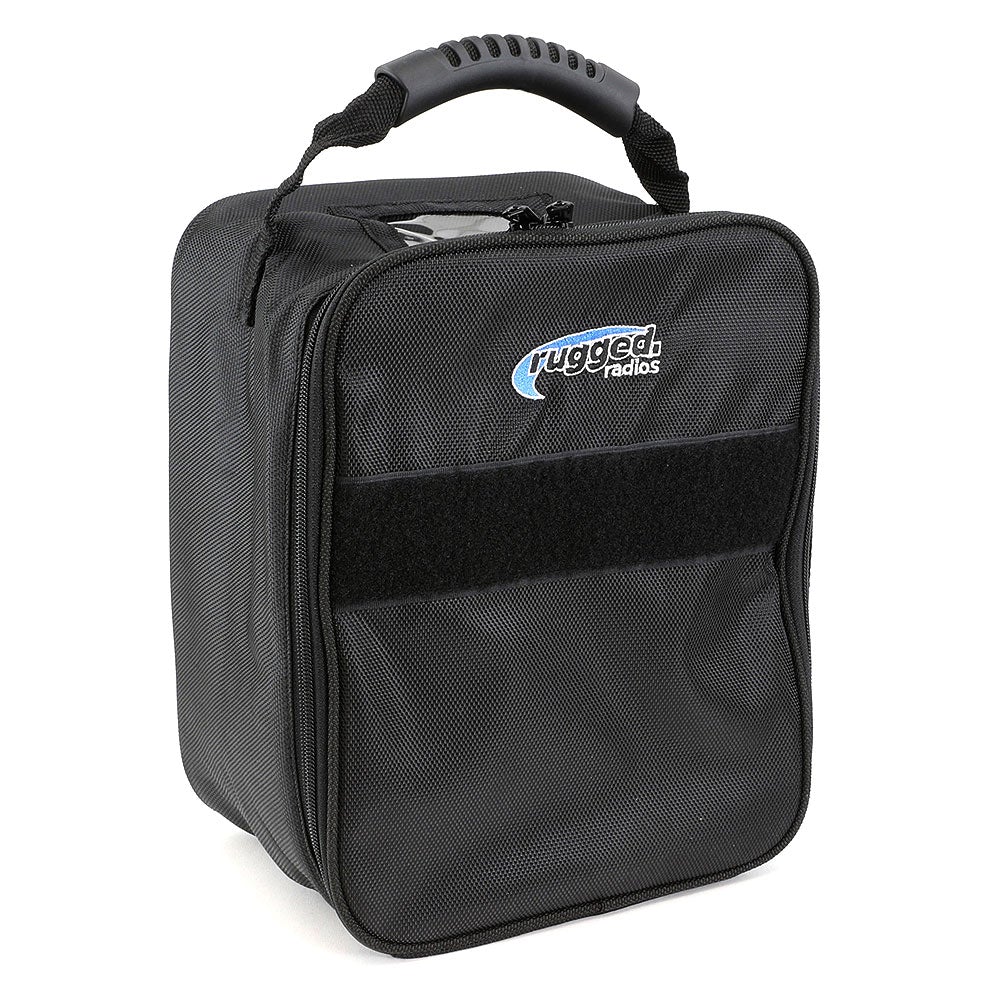

  • Storage bag to carry everything

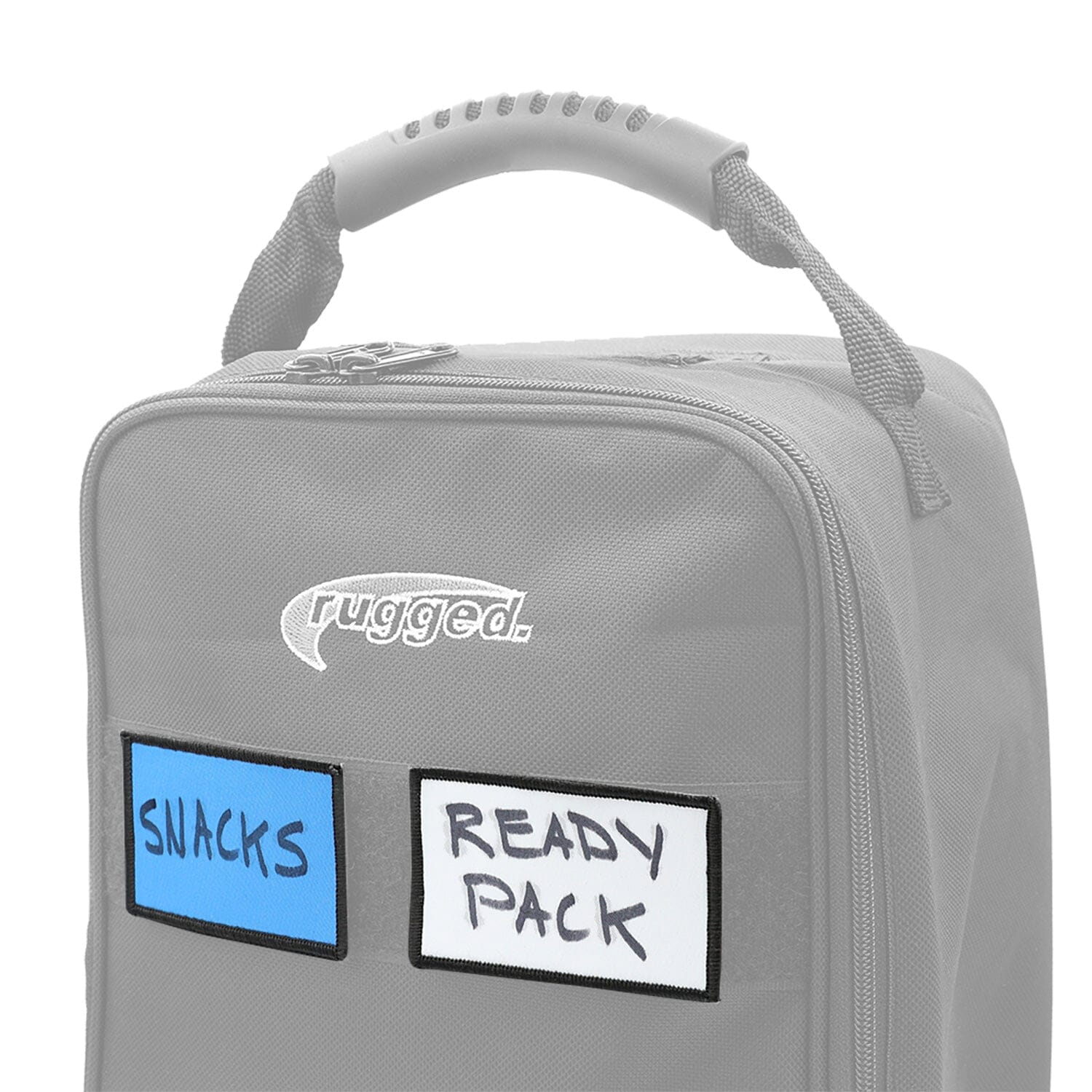

  • Bag ID Kit

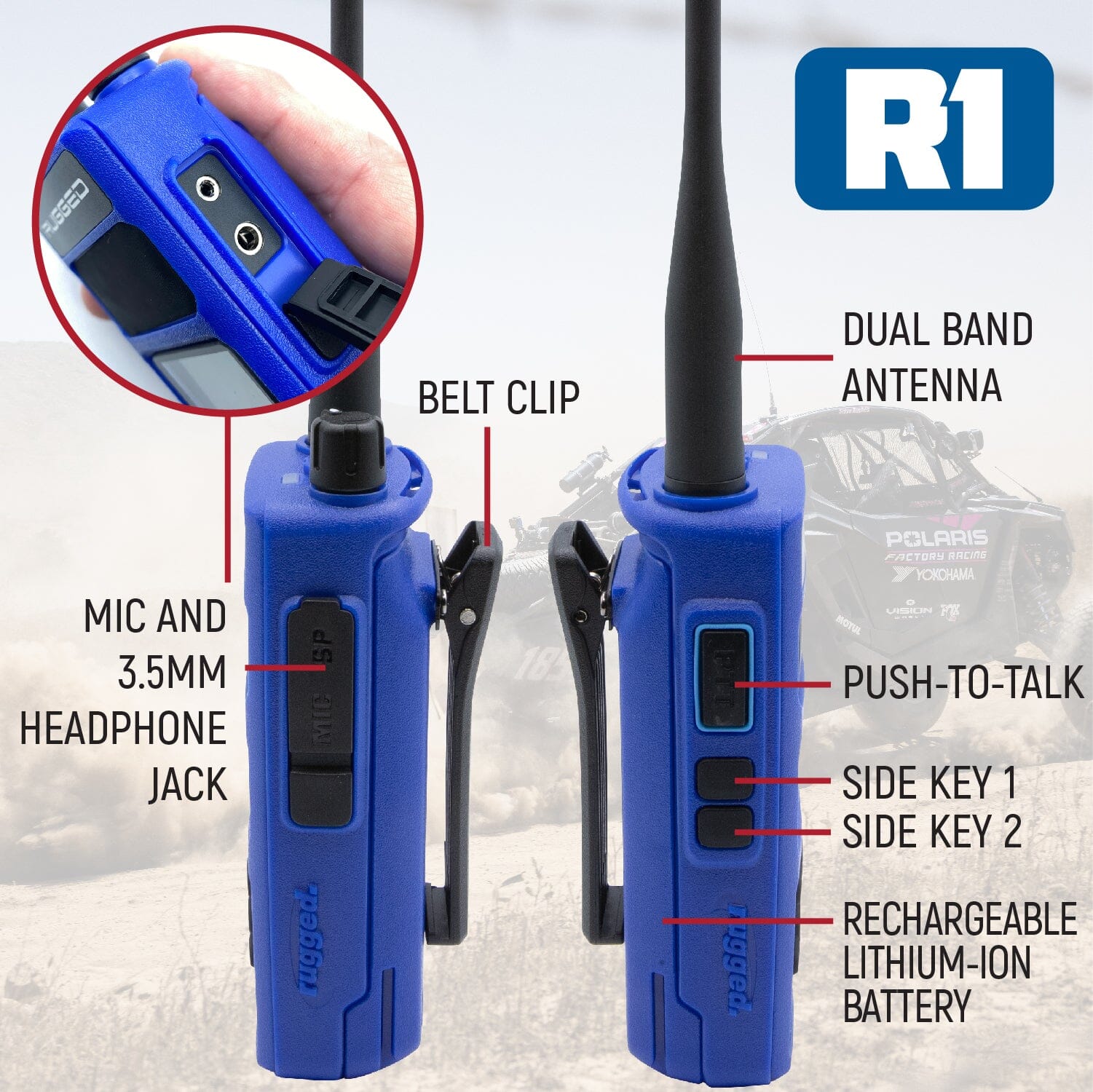

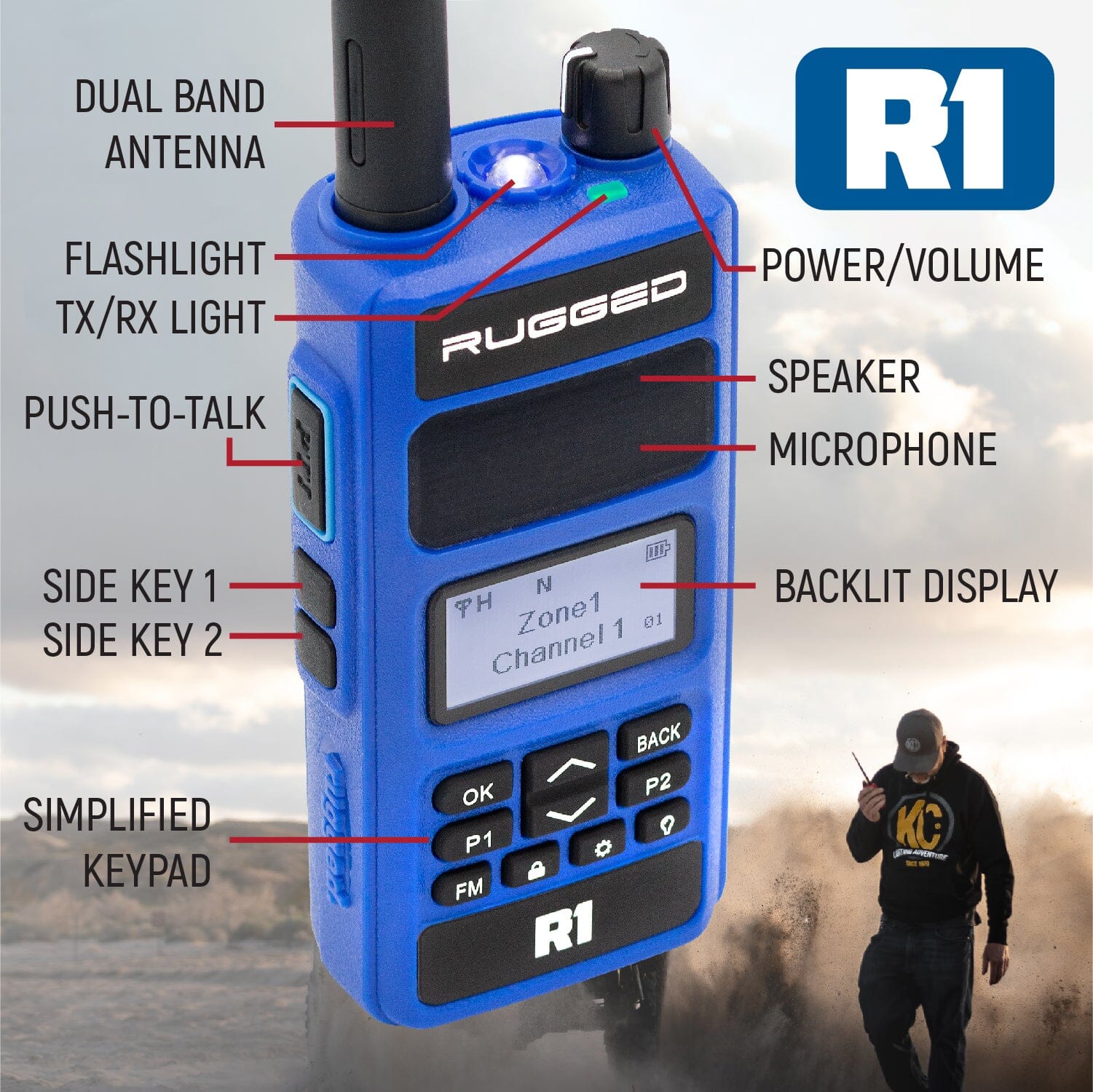

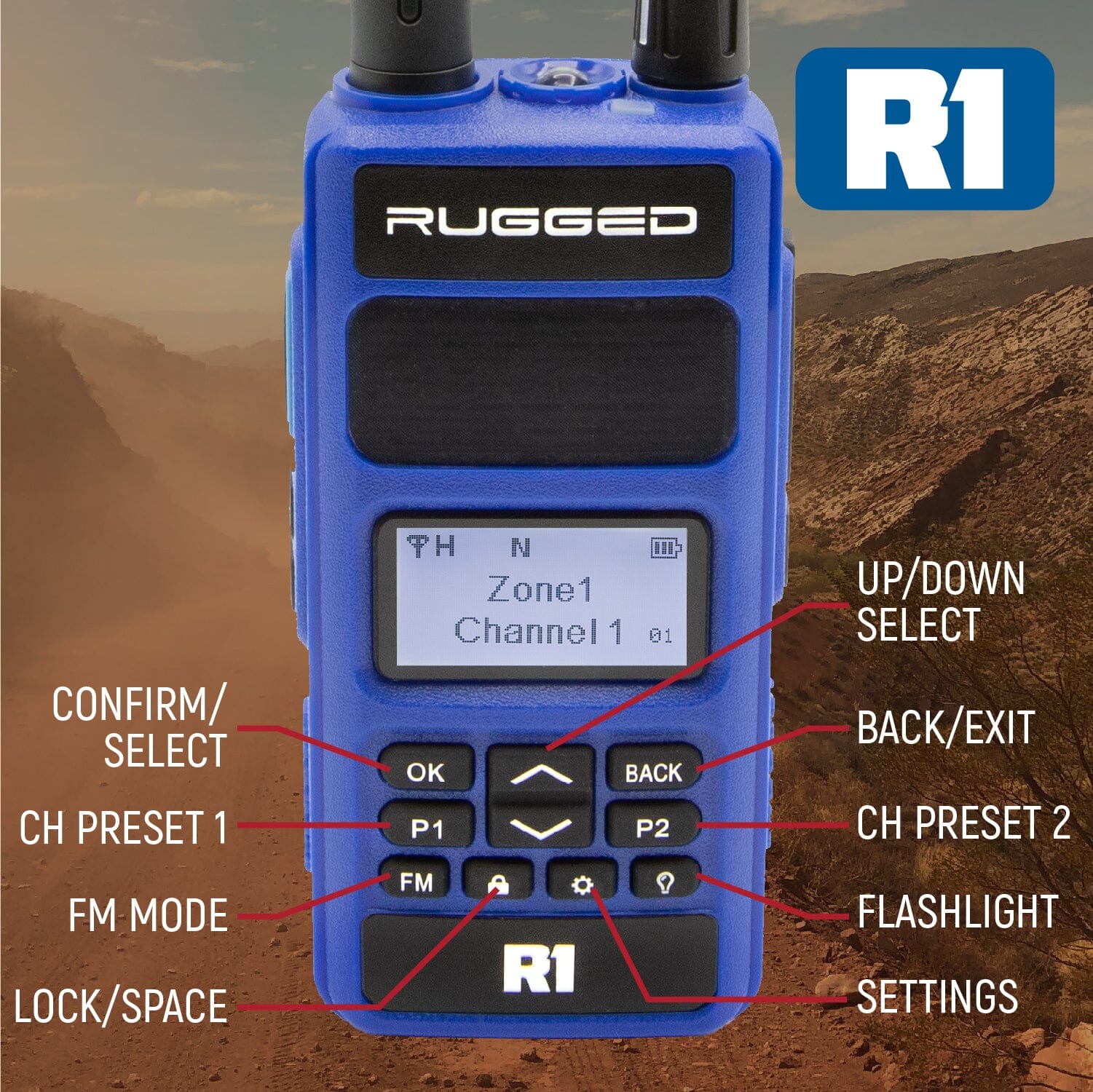

The included dual band R1 Handheld Radio boasts powerful performance in a compact unit that packs a long list of features. Talk to your chase crew, pit, and racers using the included offroad race channels.

This next-generation Rugged handheld is a workhorse! Go Further with a powerful 5 Watt transmitter, optimized receiver, and the versatility of DMR / analog cross-compatibility. DMR Digital operation allows you to take advantage of the latest technology, while Dual Band functionality lets you talk to race radios on both VHF and UHF frequencies - including our popular V3!

Compatibility: This radio works with all VHF/UHF business band radios operating on the same frequencies, as well as digital radios using the DMR platform. Radio models include, but are not limited to: R1, RDM-DB, M1, RDH-X, V3, RM60, RH5R, RDH16, as well as Icom, Motorola, Kenwood business band radios, and more.

Business License is required. Click here to learn more.

FCC and CE certified

Read More
Read Less

General

Frequency Range:

136-174MHz (VHF)

400-470MHz (UHF)

Channel Capacity: 1024

Frequency Stability: ± 1ppm

Operating Temperature: -20ºC ~ + 70ºC

Voltage: 7.4V DC

Weight: 242g (battery and antenna included)

Dimension (H x W x D): 120 x 60 x 35mm



Transmitter

Power (High): 5W

Power (Low): 1W

Transmit Current (Analog): ≤ 1.6A

Transmit Current (Digital): ≤ 0.9A

Standby Current: 0.15A

FM Modulation Mode:

11K0F3E @12.5KHz

14K0F3E @20KHz

16K0F3E @25KHz

4FSK Digital Mode:

12.5KHz Data Only: 7K60FXD

12.5KHz Data & Voice: 7K60FXW

Modulation Distortion: <5%

Hum & Noise:

≥ 45dB @25KHz

≥ 40 dB @12.5KHz

Adjacent Channel Power:

≤ -60dB @12.5KHz

Audio Response: +1 ~ -3dB

Antenna Port Spurious:

9KHz to 1GHz: ≤ -36dBm

1GHz to 12.75 GHz: ≤ -30dBm

Digital Protocol: DMR / ETSI-TS102 361-1, -2, -3



Receiver

Analog Sensitivity: 0.2μV @12dB SINAD

Digital Sensitivity: 0.25μV (BER* 5%)

Intermodulation Rejection: 60-62dB

Sensitivity: 12dB @ -122dB

Adjacent Channel Selectivity: ≤ -60dB @12.5KHz

Co-channel Rejection: ≥ 65dB

Spurious Response: ≥ 70dB

Audio Response: +1 ~ -3dB

Rated Audio Distortion: <5%

Audio Power: 1W

Modulation Noise:

≥ 45dB @25KHz

≥ 40dB @12.5KHz


 *BER = Bit Error Rate
