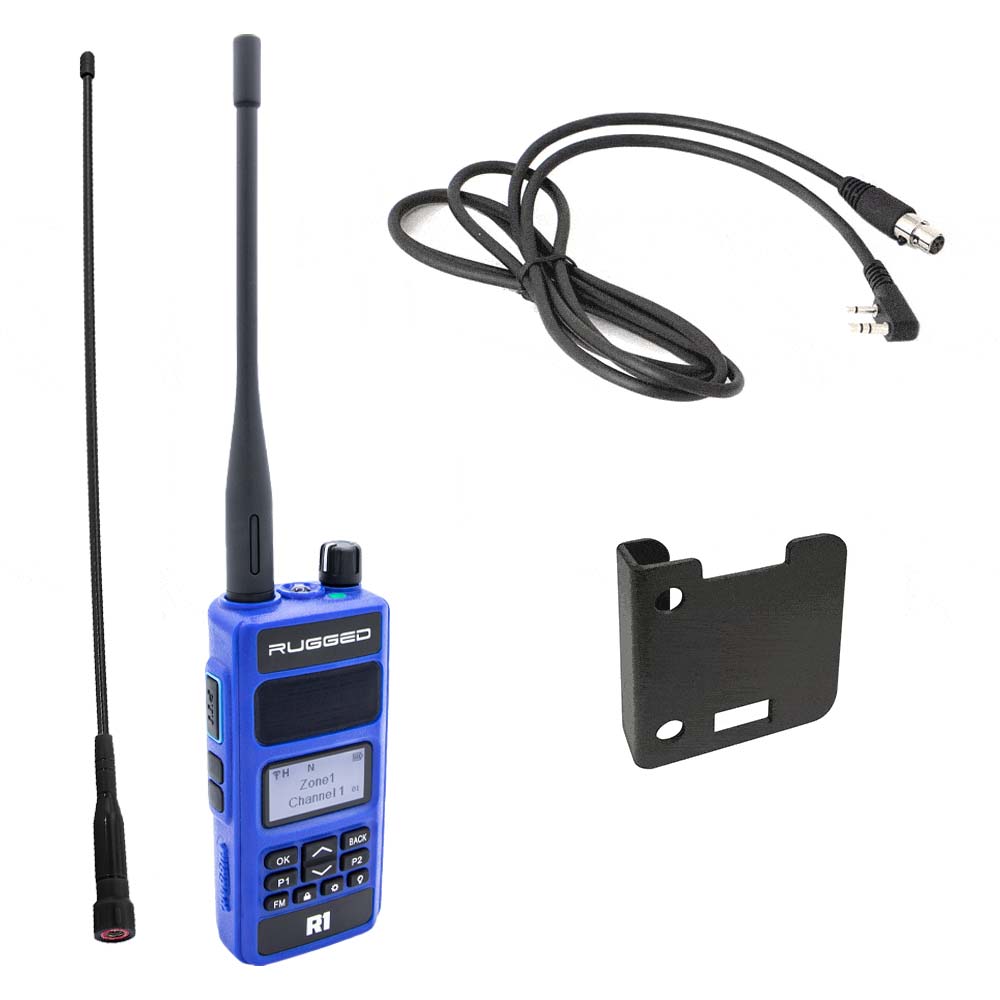

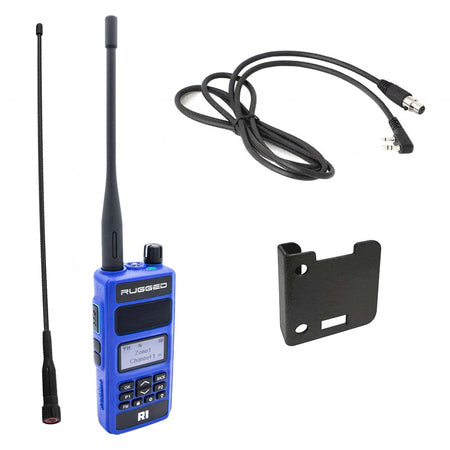

The R1 Radio Kit is a great option to provide connectivity to your intercom and offer vehicle-to-vehicle communications.

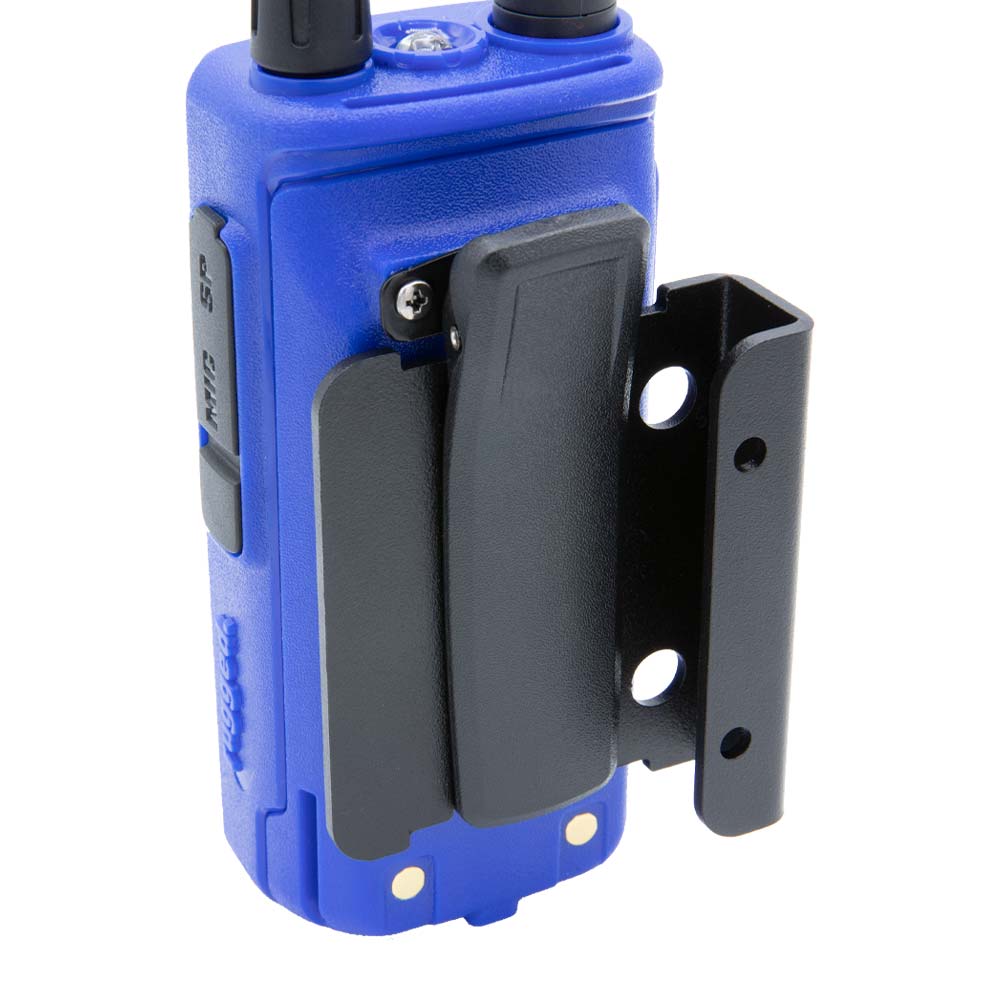

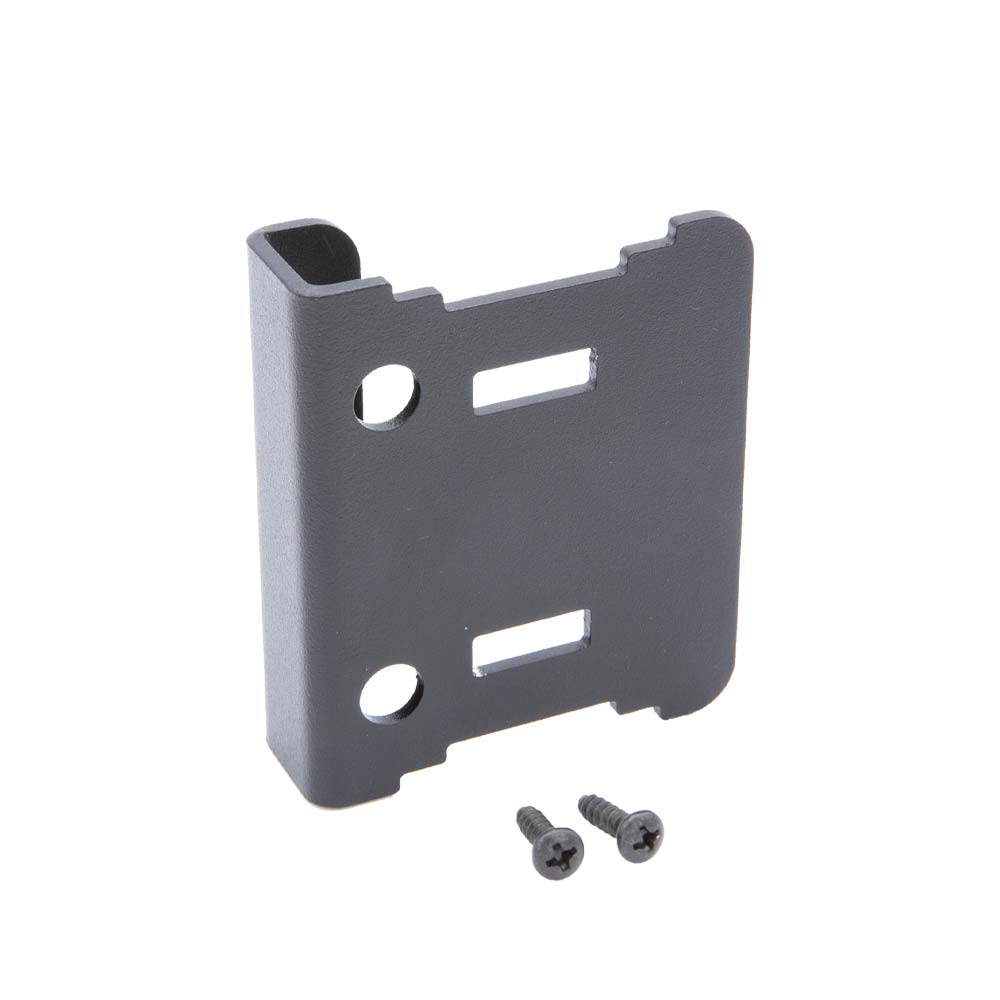

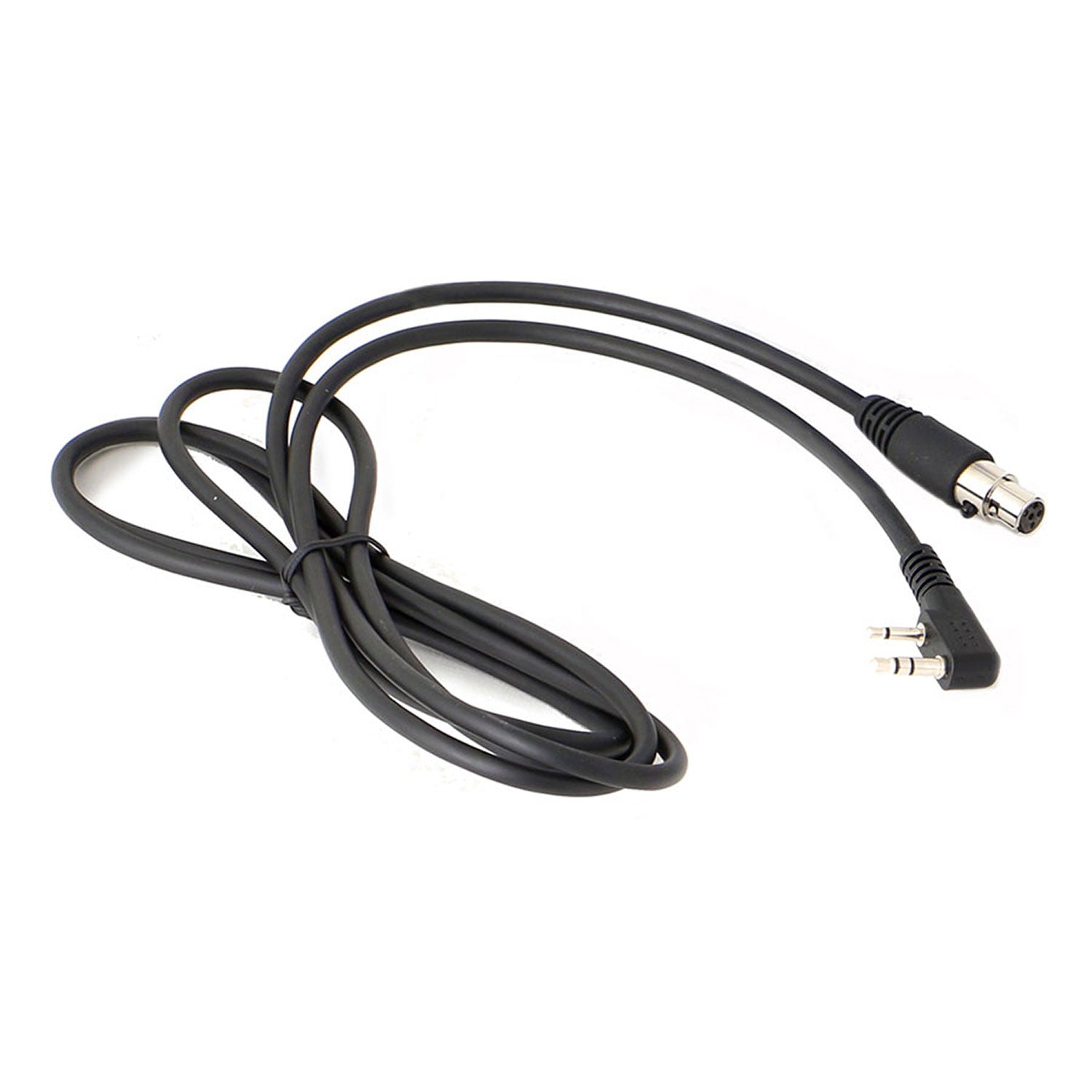

Installation is a snap with the included radio-to-intercom adapter. Simply plug radio and cables into your intercom and you're good to go! The included handheld radio mount lets you securely clip your handheld radio to your dash. This mount has been designed to be bolted directly to a dash board, or other flat surface, without the need for spacers or bar mounts.

Also included in this kit, is a long-range ducky antenna for a little extra radio boost. Make this package complete with additional accessories found below.

This next-generation Rugged R1 handheld is a workhorse! Go Further with a powerful 5 Watt transmitter, optimized receiver, and the versatility of DMR / analog cross-compatibility. DMR Digital operation allows you to take advantage of the latest technology, while Dual Band functionality lets you talk to race radios on both VHF and UHF frequencies - including our popular V3!

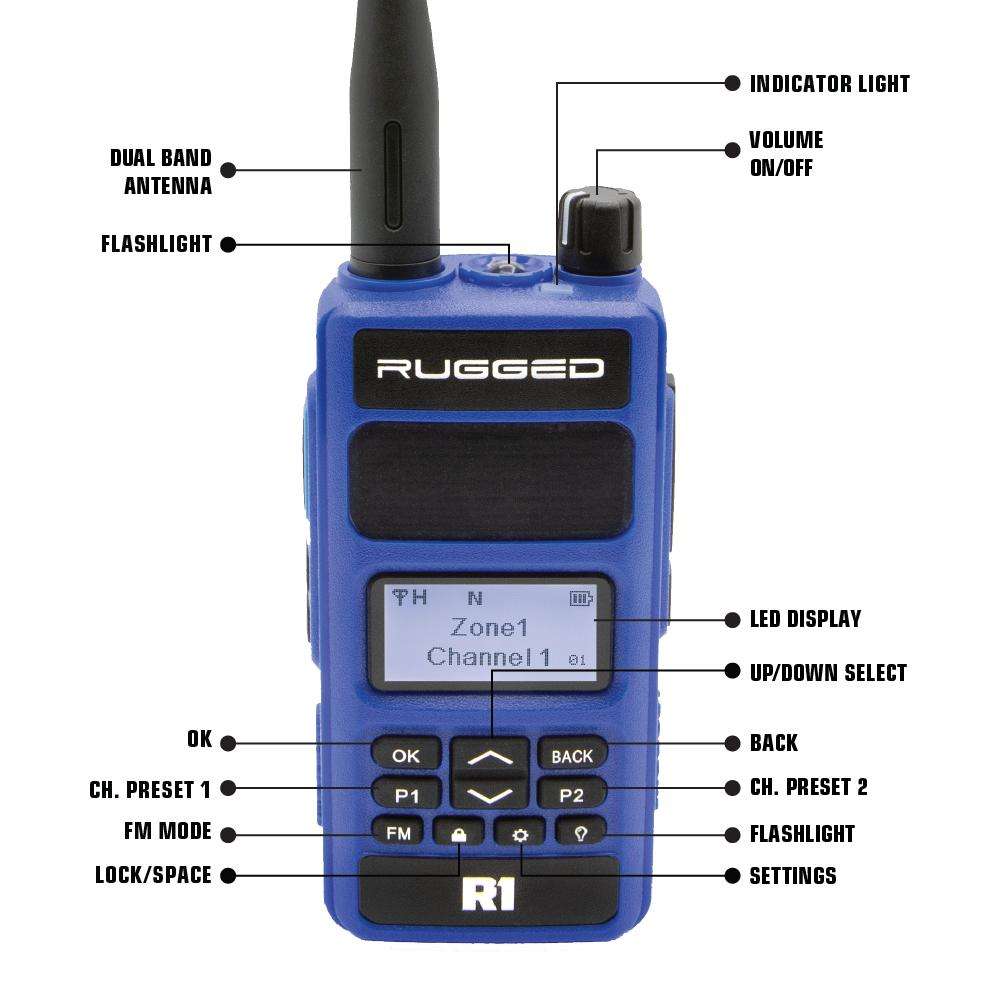

Radio Features:

  • *Works with all business analog radios and DMR Digital
  • Versatile Dual Band VHF/UHF
  • Crystal-clear digital DMR
  • Large easy-to-read LED Display
  • Easy-to-use, Intuitive Keypad and Interface
  • Text Messaging on digital channels
  • Dual monitor (listen to two channels at once)
  • Performance-tuned antenna

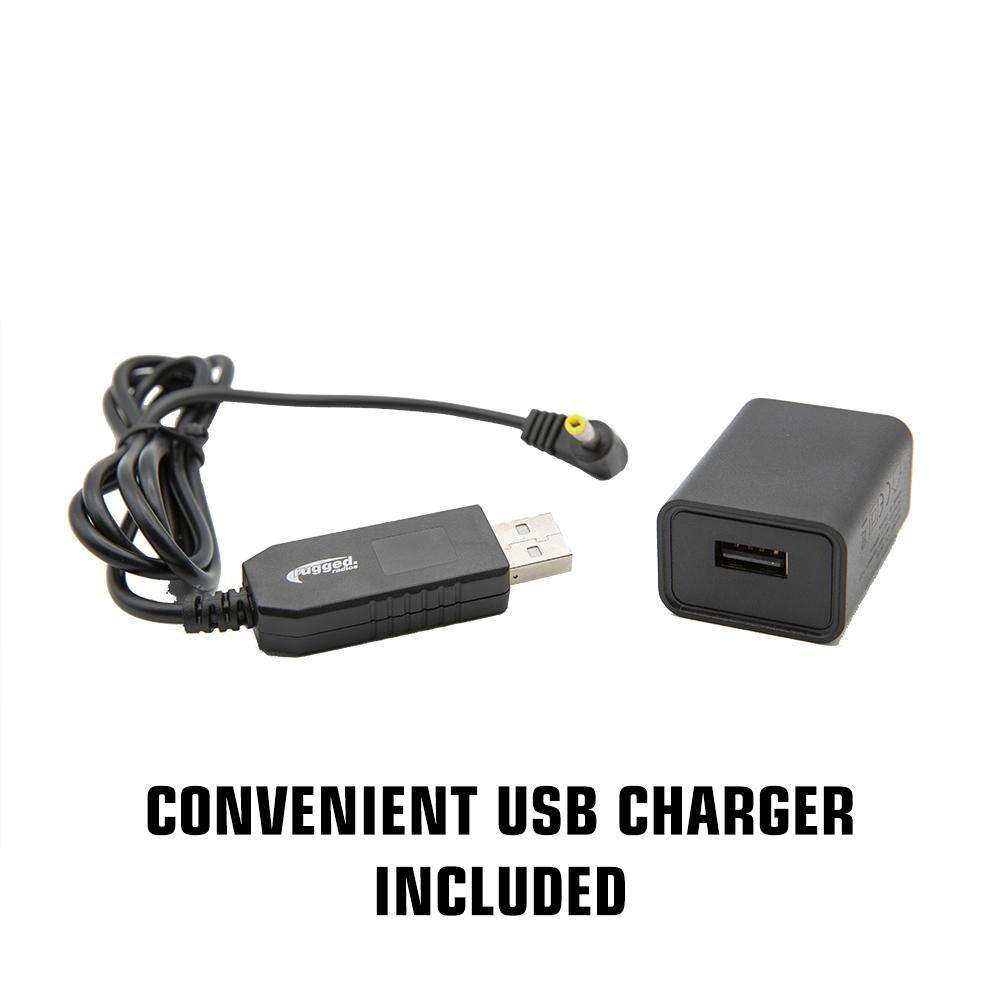

  • Charge-on-the-go USB cable included
  • Rechargeable Li-ion battery
  • Powerful 5-Watt transmitter
  • Works with 2-Pin accessories
  • Built-in safety flashlight
  • 1 Touch FM Radio
  • Lockable controls
  • 1,024 Channel & 250 Zone capacity

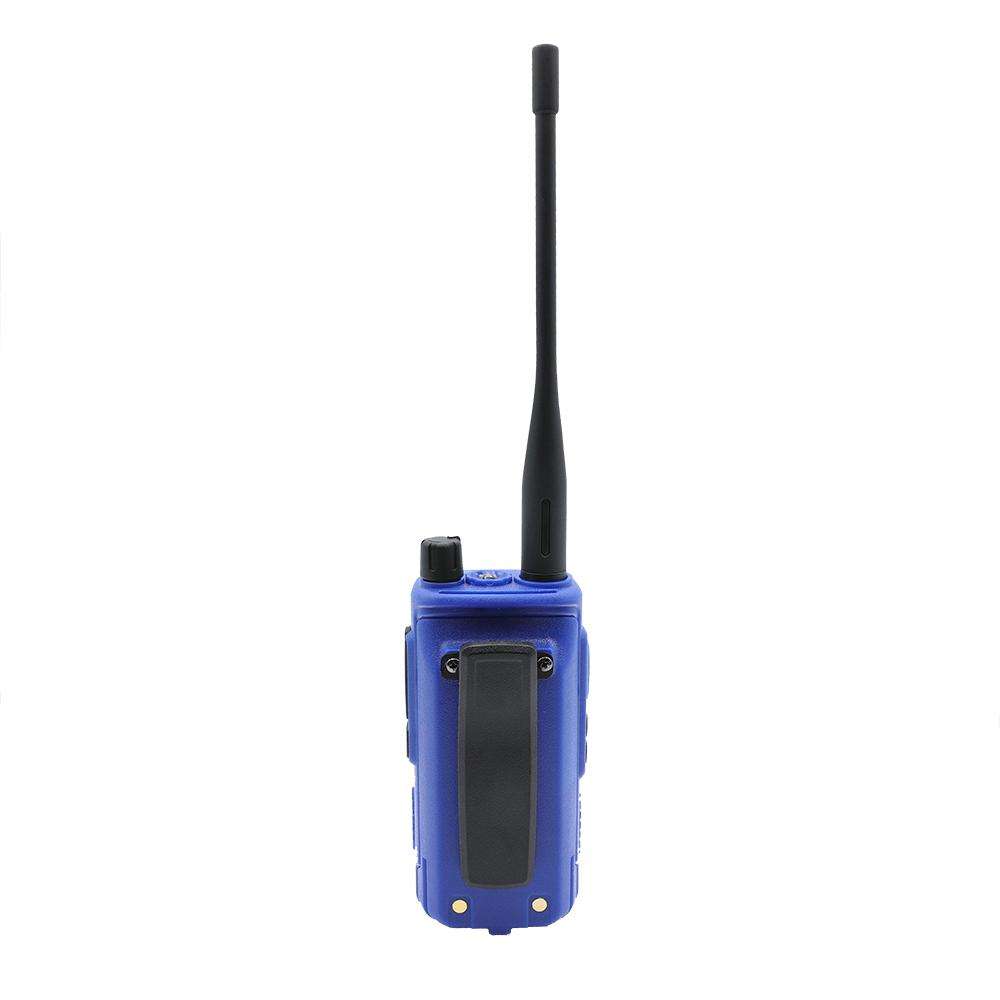

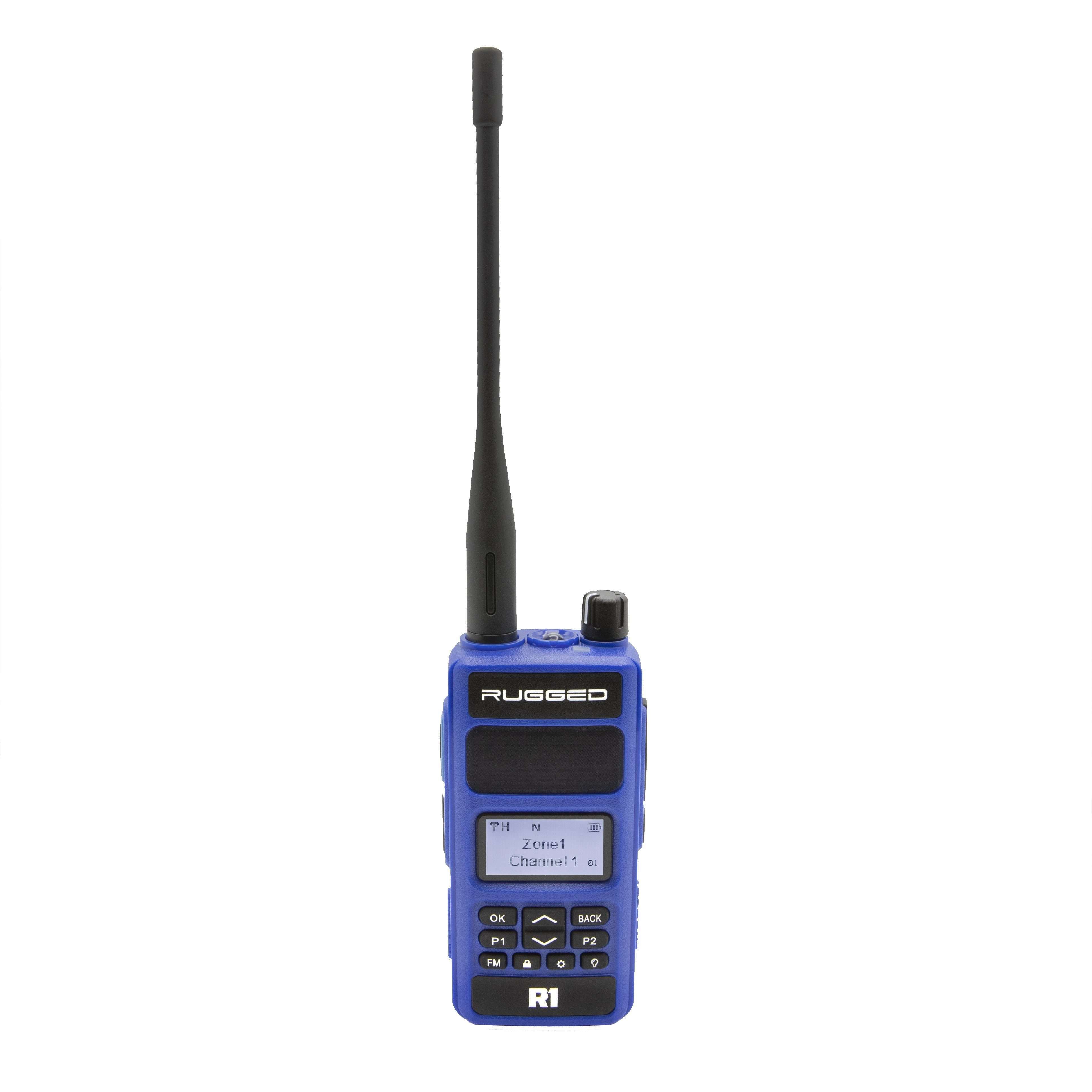

    The R1 handheld radio is a lightweight, portable, digital/analog handheld radio. Featuring powerful industrial business band frequencies, the R1 is ready to get you talking.

      Compatibility: This radio works with all VHF/UHF business band radios operating on the same frequencies, as well as digital radios using the DMR platform. Radio models include, but are not limited to: R1, RDM-DB, M1, RDH-X, V3, RM60, RH5R, RDH16, as well as Icom, Motorola, Kenwood business band radios, and more.

      Radio User Manual: Click Here

      Business License is required. Click here to learn more.

      FCC and CE certified

      Read More
      Read Less


      Frequency Range:

      136-174MHz (VHF)

      400-470MHz (UHF)

      Channel Capacity: 1024

      Frequency Stability: ± 1ppm

      Operating Temperature: -20ºC ~ + 70ºC

      Voltage: 7.4V DC

      Weight: 242g (battery and antenna included)

      Dimension (H x W x D): 120 x 60 x 35mm



      Power (High): 5W

      Power (Low): 1W

      Transmit Current (Analog): ≤ 1.6A

      Transmit Current (Digital): ≤ 0.9A

      Standby Current: 0.15A

      FM Modulation Mode:

      11K0F3E @12.5KHz

      14K0F3E @20KHz

      16K0F3E @25KHz

      4FSK Digital Mode:

      12.5KHz Data Only: 7K60FXD

      12.5KHz Data & Voice: 7K60FXW

      Modulation Distortion: <5%

      Hum & Noise:

      ≥ 45dB @25KHz

      ≥ 40 dB @12.5KHz

      Adjacent Channel Power:

      ≤ -60dB @12.5KHz

      Audio Response: +1 ~ -3dB

      Antenna Port Spurious:

      9KHz to 1GHz: ≤ -36dBm

      1GHz to 12.75 GHz: ≤ -30dBm

      Digital Protocol: DMR / ETSI-TS102 361-1, -2, -3



      Analog Sensitivity: 0.2μV @12dB SINAD

      Digital Sensitivity: 0.25μV (BER* 5%)

      Intermodulation Rejection: 60-62dB

      Sensitivity: 12dB @ -122dB

      Adjacent Channel Selectivity: ≤ -60dB @12.5KHz

      Co-channel Rejection: ≥ 65dB

      Spurious Response: ≥ 70dB

      Audio Response: +1 ~ -3dB

      Rated Audio Distortion: <5%

      Audio Power: 1W

      Modulation Noise:

      ≥ 45dB @25KHz

      ≥ 40dB @12.5KHz

       *BER = Bit Error Rate
